NMFMerge.jl

NMFMerge improves nonnegative matrix factorization (NMF) by over-factorizing and then merging components in pairs. Factorizing a data matrix $X \approx WH$ with more components than ultimately desired, and then optimally and sequentially merging the closest component pairs, tends to reach better and more reproducible optima than factorizing directly into the target number of components.

The method is described in An optimal pairwise merge algorithm improves the quality and consistency of nonnegative matrix factorization (Guo & Holy, IEEE Trans. Signal Process. 2025, doi:10.1109/TSP.2025.3585893).

Why merging helps

Convergence of NMF becomes poor when the factorization is forced to make difficult tradeoffs in describing different features of the data matrix. Performing an initial factorization with an excess of components grants the opportunity to escape such constraints and describe the full behavior of the data; redundant or noisy components are then identified and merged together.

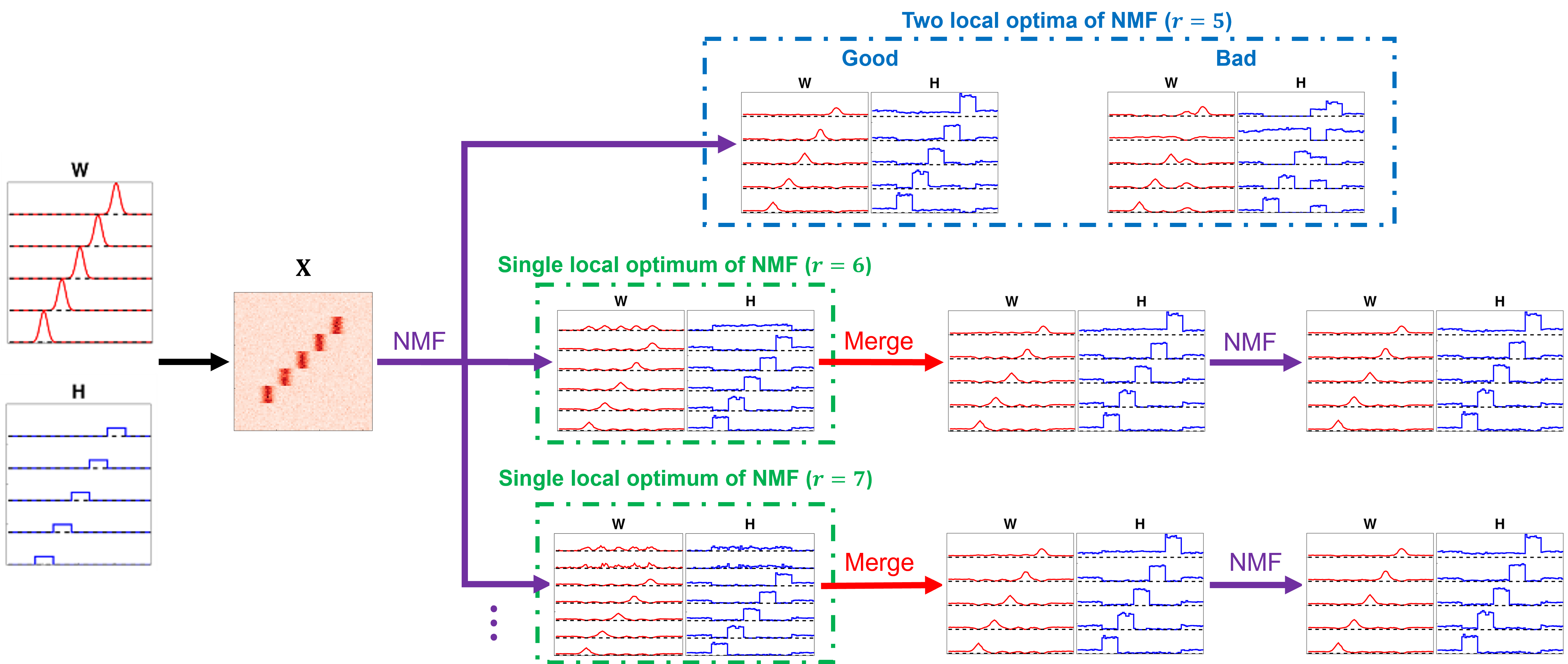

Here the data matrix is $X = WH + N$, where $W$ and $H$ are rank 5 and $N$ is noise. The "Good" and "Bad" factorizations (blue box) are two local minima reached by rank-5 NMF across 1000 different initializations, while the factorizations in the green boxes are minima found by NMF with $r \ge 6$. The higher-rank solutions can be merged to produce a rank-5 factorization. Thus, by first computing a higher-rank NMF and then merging to lower rank, you more reliably identify high-quality solutions.

Installation

NMFMerge is a registered package. From the Julia REPL, type ] to enter package mode and run:

pkg> add NMFMerge

Quick start: escaping a local minimum

Take a small nonnegative matrix that is exactly rank 3, so it has an exact rank-3 factorization with zero reconstruction error:

using NMFMerge, NMF, LinearAlgebra

X = [0 4 0 2 0 4 2 2;
     2 2 2 1 4 4 1 1;
     2 6 4 6 4 4 4 2;
     2 1 3 2 4 1 1 0]

Even so, rank-3 NMF has a spurious local minimum, and standard NMF (HALS) with NNDSVD initialization converges to it:

julia> f = svd(float(X));

julia> result_hals = nnmf(float(X), 3; init=:nndsvd, alg=:cd, initdata=f, maxiter=10^6, tol=1e-8);

julia> result_hals.objvalue / sum(abs2, X)     # relative fitting error
0.0007391570365682461

This is not slow convergence. The point is a genuine strict local minimum: its KKT conditions hold and its reduced Hessian is positive definite away from the trivial column-scaling directions, so further iteration cannot escape it.

NMF-Merge factorizes with one extra component and merges back to three, reaching the global optimum — the exact factorization:

julia> result_merge = nmfmerge(float(X), 4 => 3; alg=:cd, maxiter=10^6, tol_final=1e-10);

julia> result_merge.objvalue / sum(abs2, X)    # ≈ machine precision: exact recovery
7.5e-16

Standard NMF is stuck with a relative fitting error near $7 \times 10^{-4}$, while NMF-Merge recovers the factorization to machine precision. The merge step draws on a randomized truncated SVD, so the exact value varies slightly from run to run.

The two solutions are not small perturbations of each other; they are structurally different factorizations. Matching the components for maximum overlap (the factorization is invariant to reordering) and unit-normalizing the columns of $W$, two of the three components nearly coincide but the third is badly mismatched:

component   HALS (error 0.63)     optimal merge (error ≈ 0)   cosine
    1       0.72 0.47 0.51 0.00   0.67 0.33 0.67 0.00          0.98
    2       0.16 0.00 0.94 0.30   0.00 0.00 0.89 0.45          0.98
    3       0.00 0.57 0.57 0.59   0.00 0.89 0.00 0.45          0.77

Each block lists one component's loadings on the four features. Standard NMF smears feature 3 across components 2 and 3, while the optimal solution keeps it in component 2 alone; the rows of $H$ differ in the same way. No reordering or rescaling reconciles the two — standard NMF has converged to a genuinely different, worse description of the data, and merging from an over-complete fit escapes it.

Lower-level workflow

nmfmerge runs the whole pipeline, but the building blocks are exported so you can drive merging yourself, for example when choosing the number of components:

1. colnormalize rescales the columns of W to unit 2-norm (merging requires unit-norm columns), pushing the scale into H so that W * H is unchanged.
2. merge_pq merges a normalized factorization down to a chosen number of components and records the sequence of merges, including the reconstruction error each merge incurs. Merging all the way to one component and inspecting those errors might provide hints about an appropriate number of components.
3. merge_replay replays a prefix of that merge sequence, reproducing the factors merge_pq would have returned had it stopped at the corresponding number of components.

See the API reference for full signatures and examples.

Citation

If you use this package, please cite the publication above; see the "Cite this repository" link in the GitHub "About" bar for format options.
